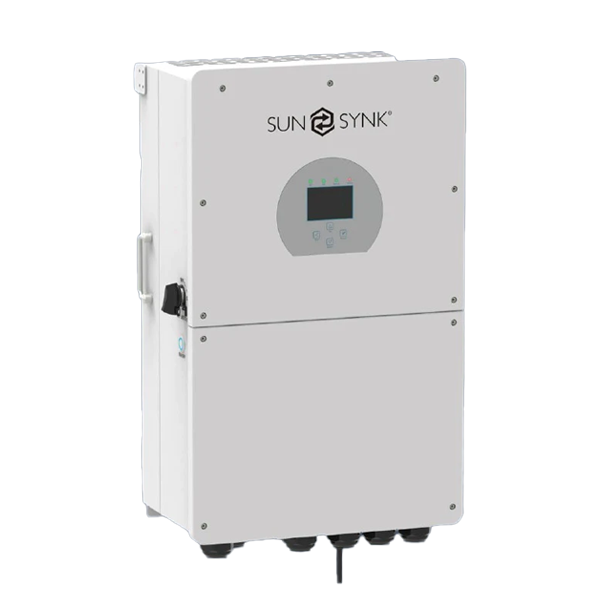

Sunsynk Sun 12kW Three Phase LV Hybrid

Description
Additional information

Description

Product Features:

Dual MPPT design
Compatible with most Lithium-ion batteries and Lead Acid batteries
Mobile App for monitoring
IP65 rated
Automatic switching from Grid-Tied to Off-Grid mode
Zero export function
Up to 16 units with the same firmware can be paralleled
Comes with the Wi-Fi logger and CT
Compatible with SolarMan App for Monitoring
Essential and Non-Essential Loads outputs
Push-in terminal for PV connection
Maximum charging /discharging current of 240A

Product Documents:

SUNSYNK-8K-10K-12K-SG04LP3 – Datasheet v13.pdf
Three-Phase-H-I-Installer-Manual-v14.pdf

Additional information

TECHNICAL SPECIFICATION	Weight: 45 kg Rated Power: 12,000 W Min PPT Voltage: 160 V Max PPT Voltage: 800 V DC Startup Voltage: 160 V DC Shutdown Voltage: 150 V Max Input Voltage: 1,000 V Max DC Power: 15,000 W Max AC Power (5 Minutes): 13,200 W Surge AC Power (1 Second): 24,000 W Max DC Current: 37.5 A Max DC Inputs: 3 Has DC Fuses: 0 Connector: MC4 Included Connectors: 0 Euro Efficiency: 99.9 % Transformer: None MPPT Quantity : 2 Has Integrated DC Switch: Yes Warranty: 5 years

TECHNICAL SPECIFICATION

Weight: 45 kg
Rated Power: 12,000 W
Min PPT Voltage: 160 V
Max PPT Voltage: 800 V
DC Startup Voltage: 160 V
DC Shutdown Voltage: 150 V
Max Input Voltage: 1,000 V
Max DC Power: 15,000 W
Max AC Power (5 Minutes): 13,200 W
Surge AC Power (1 Second): 24,000 W
Max DC Current: 37.5 A
Max DC Inputs: 3
Has DC Fuses: 0
Connector: MC4
Included Connectors: 0
Euro Efficiency: 99.9 %
Transformer: None
MPPT Quantity : 2
Has Integrated DC Switch: Yes
Warranty: 5 years
